Angle Valve high vacuum stainless steel 304 316L KF CF
|
Model |
OD |
A |
B |
C |
D |
Figure |
|
AVB-KF16-M |
0.75 |
2.15 |
5.41 |
6.15 |
2.24 |
2 |
|
AVB-KF25-M |
1 |
2.03 |
5.13 |
5.89 |
2.24 |
2 |
|
AVB-KF40-M |
1.5 |
2.4 |
6.2 |
7.48 |
2.98 |
2 |
|
AVB-KF50-M |
2 |
3.4 |
8.15 |
9.91 |
3.48 |
2 |
Features
＊The typical KF or NW assembly consists of two identical flanges, a center-ring, and an aluminum clamp with a wingnut fastener frequently connect and disconnect without tools.
＊The mating flange surfaces compress an O’ring to generate a seal.
＊The vacuum seal is effected by uniform application of pressure by the clamp on 15º surface of the flange.

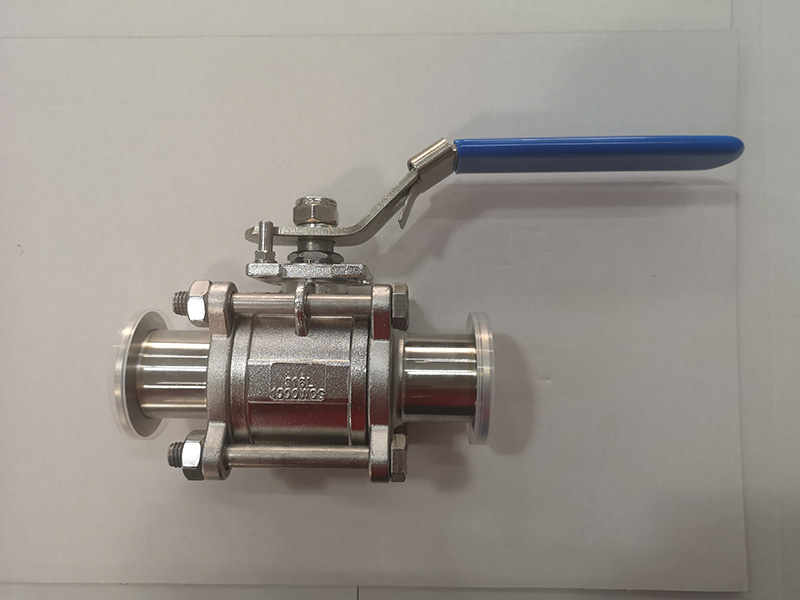

Ball Valve
|
Model |
Connector |
A |
B |
|
KF16BVO92(3/4) |
KF16 |
64.4 |
92 |
|
KF25BV107(1") |
KF25 |
80 |
107 |
|
KF4OBV130(1.5") |
KF40 |
106.9 |
130 |
|
KF5OBV151(2") |
KF50 |
121.7 |
151 |
Gate Vlave
|
Body Size |
CF Flange oD |
Weight(kg) |
Air pressure |
|
1.5" |
69.5 |
2.6 |
5~8 |
|
2" |
86 |
4 |
5~8 |
|
2.5" |
113.6 |
10 |
5~8 |
|
4" |
151.6 |
22 |
5~8 |
|
6" |
202.5 |
28 |
5~8 |
|
8" |
253.2 |
40 |
5~8 |
Gate Vlave
|
Body Size |
CF Flange oD |
Weight(kg) |
Air pressure |
|
1.5" |
69.5 |
2.6 |
5~8 |
|
2" |
86 |
4 |
5~8 |
|
2.5" |
113.6 |
10 |
5~8 |
|
4" |
151.6 |
22 |
5~8 |
|
6" |
202.5 |
28 |
5~8 |
|
8" |
253.2 |
40 |
5~8 |
